Description

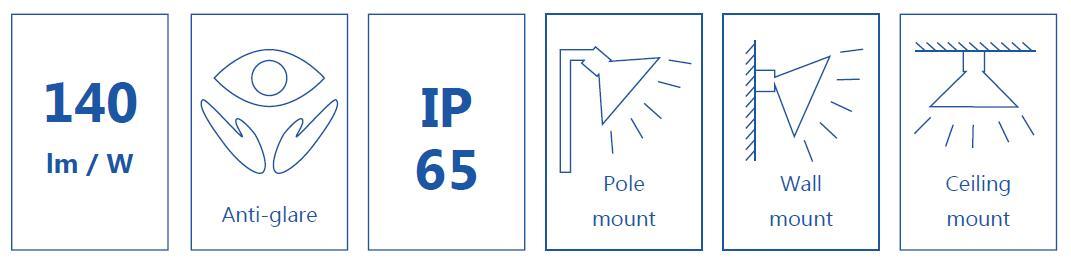

● Optical distributions: round type
● Anti-glare transparent cover
● LED light source featuring high luminous efficacy and long life
● Degree of protection: IP 65
● Suitable for pole mounting, wall mounting and ceiling mounting
| Certification | |||
|
International approvals
|
SASO, CCC | ||
|
Conformity to standards
|
IEC60598 | ||
| Material | |||
|
Body material
|
Aluminum alloy with epoxy powder coating | ||
|
Diffuser
|
Polycarbonate | ||
| Light source | |||
|
Brand
|
EDISON | ||
|
Wattage Type
|
70 W LED | ||
|
Luminous flux
|
140 lm / W | ||
|
Life
|
100000 h | ||
|
Rated voltage
|
220 V – 240 V AC 50 Hz / 60 Hz | ||
|
Class of insulation
|
Class I | ||
|
Degree of protection
|
IP 65 | ||
|
Operating temperature
|
-20 ºC to +55 ºC | ||
|
Cable entry
|
G3/4 | ||
|
Corrosion-proof class
|
WF2 | ||
| Model | Lamp power | Lamp type | Operating current | Color temperature | Weight |
| (W) | (W) | (A) | (K) | (kg) | |
| NFC9186A/70/LED | 70 | LED | 0.35 | 5000 – 7000 (cool white) | 4.9 |
| NFC9186A/70/LED | 70 | LED | 0.35 | 2700 – 3300 (warm white) | 4.9 |
